The intricate dance of combustion within a vehicle’s engine relies on precise measurements and adjustments. One crucial component in this symphony is the Manifold Absolute Pressure (MAP) sensor, a silent guardian monitoring the engine’s intake manifold pressure. This pressure, a direct indicator of the air density entering the engine, plays a pivotal role in fuel-air mixture calculation and ultimately, the engine’s performance.

Understanding the MAP Sensor: The Engine’s Barometer

The MAP sensor, a miniature pressure gauge, is typically located within the intake manifold of a gasoline engine. It converts the pressure within the manifold into an electrical signal, relaying this information to the engine control unit (ECU). The ECU, in turn, uses this data to determine the appropriate amount of fuel to inject, ensuring optimal combustion and efficient power output.

Recognizing the Signs: When the MAP Sensor Falters

A malfunctioning MAP sensor can disrupt the delicate balance of the engine’s fuel-air mixture, leading to a range of symptoms, including:

• Engine Stalling: A faulty MAP sensor can provide inaccurate pressure readings, causing the ECU to miscalculate fuel delivery, leading to engine stalling, particularly at idle or during acceleration.
• Rough Idle: Erratic pressure readings can result in an uneven fuel-air mixture, causing the engine to idle roughly, with vibrations and inconsistent engine speed.
• Poor Fuel Economy: Incorrect fuel delivery due to a faulty MAP sensor can lead to excessive fuel consumption, impacting the vehicle’s overall fuel efficiency.
• Hesitation and Sluggish Acceleration: A malfunctioning sensor can cause the ECU to deliver an inadequate fuel-air mixture, resulting in hesitant acceleration and sluggish performance.
• Check Engine Light: A malfunctioning MAP sensor will trigger the check engine light, accompanied by a diagnostic trouble code (DTC) indicating a problem with the sensor.

Diagnosing the Problem: Unveiling the MAP Sensor’s Secrets

Diagnosing a faulty MAP sensor involves a systematic approach, combining visual inspection with diagnostic tools:

1. Visual Inspection:

• Inspect the sensor’s wiring: Look for any signs of damage, chafing, or corrosion in the wiring harness connecting the MAP sensor to the ECU.
• Examine the sensor itself: Check for any visible damage, cracks, or leaks in the sensor housing.

2. Diagnostic Tools:

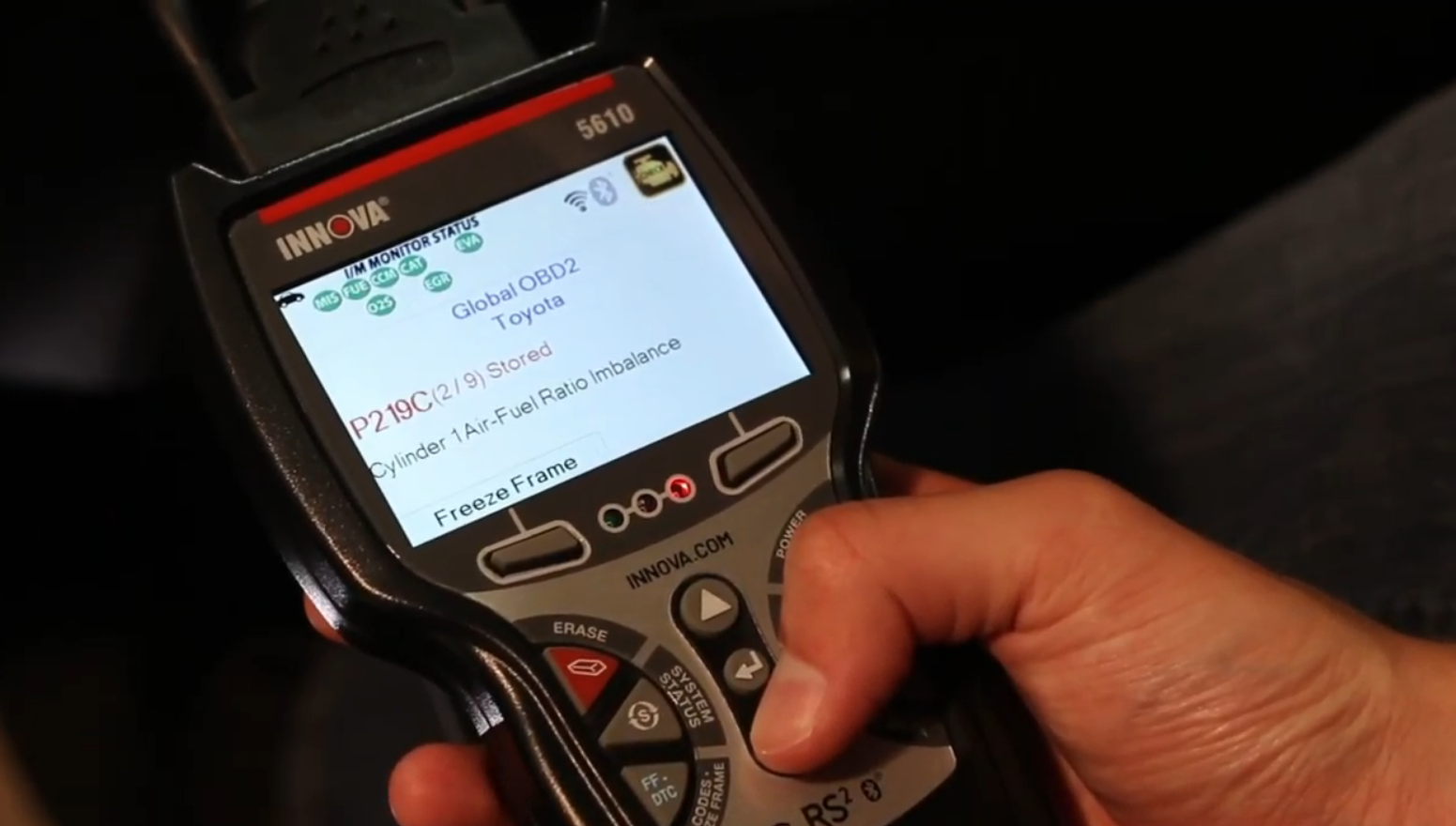

• OBD-II Scanner: A scan tool can retrieve diagnostic trouble codes (DTCs) related to the MAP sensor. Specific codes, such as P0106 (MAP Sensor Circuit Range/Performance Problem), P0107 (MAP Sensor Circuit Low Input), or P0108 (MAP Sensor Circuit High Input), point towards a faulty sensor.
• Digital Multimeter: A multimeter can be used to measure the sensor’s output voltage. This requires comparing the measured voltage to the manufacturer’s specifications for the specific sensor.
• Vacuum Gauge: A vacuum gauge can be used to measure the actual manifold pressure and compare it to the readings provided by the MAP sensor. Discrepancies between the two readings indicate a potential sensor malfunction.

3. Live Data Analysis:

• Scan Tool with Live Data: Observing the live data stream from the MAP sensor can reveal inconsistencies or erratic readings, indicating a faulty sensor.

Repairing the Fault: Restoring the Engine’s Harmony

Once a faulty MAP sensor is identified, the solution involves replacing the sensor with a new one.

1. Replacing the MAP Sensor:

• Locate the sensor: The MAP sensor is typically located within the intake manifold, easily accessible once the air intake system is disconnected.
• Disconnect the wiring harness: Carefully disconnect the electrical connector leading to the MAP sensor.
• Remove the sensor: Unscrew the sensor from its mounting point using the appropriate wrench or socket.
• Install the new sensor: Carefully install the new sensor, ensuring a secure fit and proper alignment.
• Reconnect the wiring harness: Connect the electrical connector to the new sensor.
• Clear DTCs: After installation, clear the diagnostic trouble codes using an OBD-II scanner.

2. Additional Considerations:

• Inspect the intake manifold: While replacing the MAP sensor, it’s advisable to inspect the intake manifold for any leaks or cracks that could affect the accuracy of the sensor readings.
• Verify vacuum lines: Ensure all vacuum lines connected to the MAP sensor are intact and free from leaks.

FAQs: Addressing Common Questions

Q: What are the common causes of MAP sensor failure?

A: MAP sensor failures can be attributed to several factors, including:

• Contamination: Dirt, oil, or debris can accumulate on the sensor’s diaphragm, affecting its ability to accurately measure pressure.
• Electrical problems: Damaged wiring, corrosion in the connector, or a faulty ECU can disrupt the sensor’s electrical signal.
• Mechanical damage: Impact or vibration can cause physical damage to the sensor’s housing or internal components.
• Extreme temperatures: Exposure to extreme temperatures, particularly high heat, can degrade the sensor’s performance.

Q: Can a faulty MAP sensor cause engine damage?

A: While a faulty MAP sensor may not directly cause engine damage, it can lead to conditions that can potentially harm the engine. For instance, incorrect fuel delivery due to a faulty sensor can lead to lean or rich fuel mixtures, potentially causing engine knocking, misfires, or even engine damage in extreme cases.

Q: Can I clean a MAP sensor?

A: It’s generally not recommended to clean a MAP sensor. The sensor’s diaphragm is delicate and easily damaged. Attempting to clean it can lead to further damage, rendering the sensor unusable.

Q: Can I drive with a faulty MAP sensor?

A: While driving with a faulty MAP sensor is possible, it’s not advisable. The inaccurate pressure readings can lead to poor engine performance, reduced fuel economy, and potentially cause damage in the long run.

Tips for Prolonging MAP Sensor Life

• Regular maintenance: Follow the manufacturer’s recommended maintenance schedule for the vehicle.
• Keep the engine clean: Regularly clean the engine bay and avoid excessive oil leaks, which can contaminate the MAP sensor.
• Use high-quality fuel: Using high-quality fuel can help prevent the buildup of deposits in the intake manifold and on the MAP sensor.

Conclusion: The Vital Role of the MAP Sensor

The MAP sensor, though seemingly small and unobtrusive, plays a crucial role in maintaining the health and efficiency of a gasoline engine. Its ability to accurately measure manifold pressure is essential for proper fuel delivery, ensuring optimal engine performance and fuel economy. By understanding the symptoms of a faulty MAP sensor and following the steps outlined for diagnosis and repair, vehicle owners can ensure their engines operate at peak efficiency, providing a smooth and reliable driving experience.
