Deciphering the Engine’s Whisper: A Guide to Testing the MAP Sensor
The modern internal combustion engine is a marvel of engineering, a symphony of moving parts working in concert to transform fuel into power. Yet, even the most sophisticated machine can falter, and one crucial component that can lead to performance issues is the Manifold Absolute Pressure (MAP) sensor. This unassuming device plays a critical role in determining the engine’s air intake, directly influencing fuel delivery and ultimately, the engine’s performance and efficiency.
Understanding the MAP Sensor’s Role
The MAP sensor acts as a vital link between the engine’s intake manifold and the engine control unit (ECU). It measures the pressure within the intake manifold, which is directly related to the amount of air entering the engine. This information is then relayed to the ECU, which uses it to calculate the appropriate amount of fuel to inject.
Imagine the MAP sensor as a silent observer, meticulously monitoring the engine’s "breath" and communicating this vital information to the ECU. This information allows the ECU to fine-tune the fuel-air mixture, ensuring optimal combustion and smooth engine operation.
Recognizing the Signs of a Faulty MAP Sensor
A faulty MAP sensor can disrupt this delicate balance, leading to a range of symptoms that can be easily mistaken for other issues. Some common signs include:
- Engine Stalling or Rough Idle: An inaccurate MAP reading can lead to an imbalanced fuel-air mixture, causing the engine to stumble or stall, particularly at idle.
- Poor Acceleration: A faulty sensor can result in insufficient fuel delivery, leading to sluggish acceleration and a noticeable lack of power.
- Increased Fuel Consumption: A rich fuel mixture, caused by an incorrect MAP reading, can significantly increase fuel consumption, impacting your wallet and the environment.

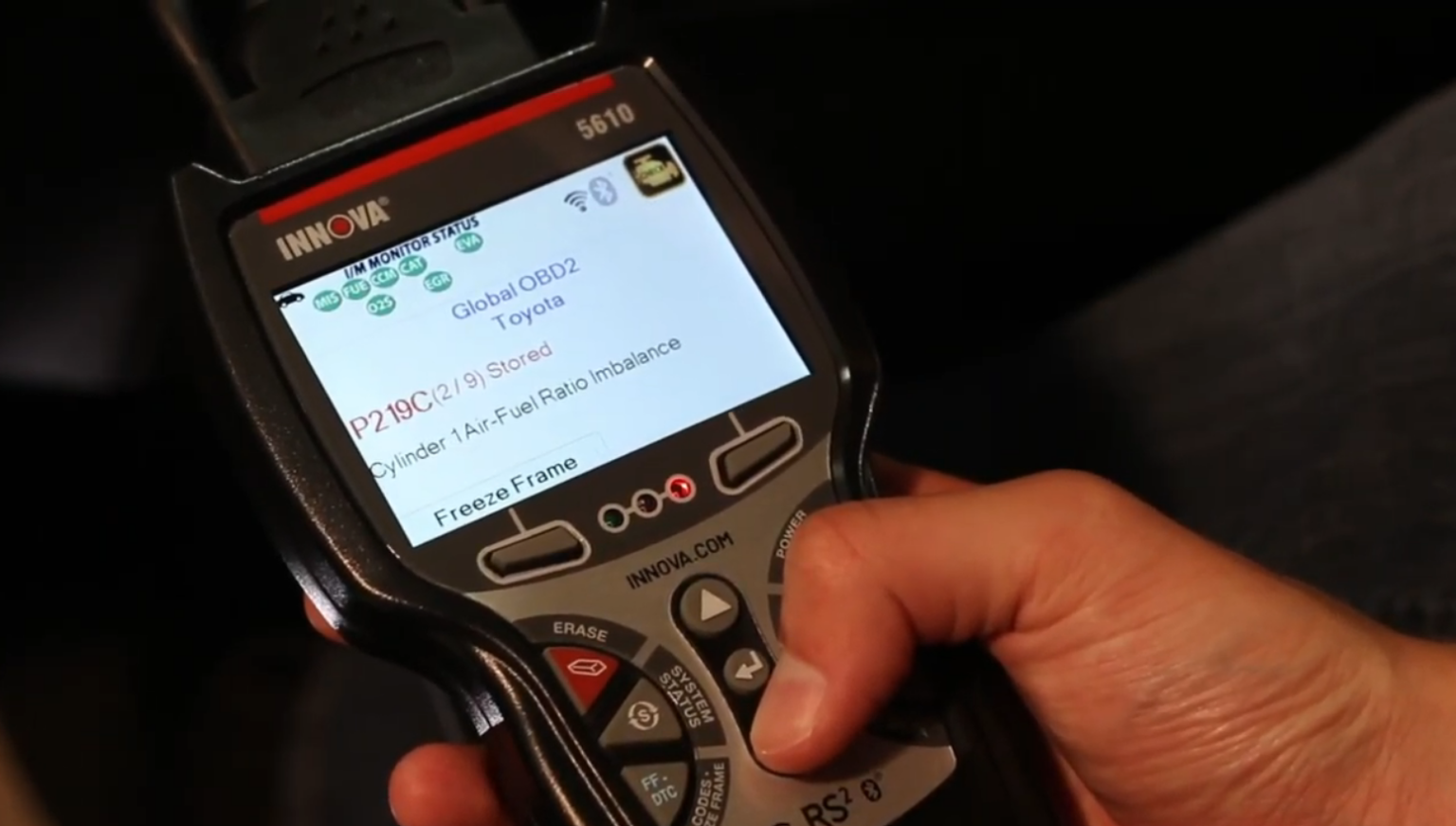

- Check Engine Light: A malfunctioning MAP sensor will often trigger the check engine light, prompting a diagnostic code related to the sensor or fuel system.
The Importance of Testing the MAP Sensor
Identifying and addressing a faulty MAP sensor is crucial for maintaining optimal engine performance and fuel efficiency. A malfunctioning sensor can lead to:
- Increased Emissions: An imbalanced fuel-air mixture can result in incomplete combustion, leading to higher emissions and contributing to air pollution.
- Engine Damage: A consistently rich fuel mixture can lead to engine damage due to excessive carbon buildup and potential detonation.
- Reduced Engine Life: Prolonged operation with a faulty MAP sensor can contribute to premature wear and tear on engine components, ultimately shortening its lifespan.
Testing the MAP Sensor: A Step-by-Step Guide
Testing a MAP sensor requires a basic understanding of automotive electrical systems and the use of a multimeter. The following steps provide a comprehensive guide:
1. Gathering the Necessary Tools:
- Multimeter: A digital multimeter (DMM) with the ability to measure both voltage and resistance is essential.
- Vacuum Pump: A hand-held vacuum pump is necessary to simulate intake manifold pressure.
- Service Manual: Refer to your vehicle’s service manual for specific information on your MAP sensor’s location, wiring, and test specifications.
2. Locating the MAP Sensor:
The MAP sensor is typically located on the intake manifold, often near the throttle body. It is usually a small, cylindrical sensor with a single or multiple electrical connectors. Consult your service manual for its precise location.
3. Disconnecting the Electrical Connector:
Carefully disconnect the electrical connector from the MAP sensor. This will allow you to test the sensor’s electrical circuitry without affecting the vehicle’s operation.
4. Measuring the Sensor’s Resistance:
- Locate the Sensor’s Terminals: Identify the terminals on the sensor’s connector. The service manual will provide a wiring diagram indicating the terminals for resistance testing.
- Set the Multimeter to Resistance Mode: Select the appropriate resistance setting on your multimeter.
- Connect the Multimeter Probes: Connect the multimeter probes to the designated terminals on the sensor.
- Record the Resistance Reading: Note the resistance reading displayed on the multimeter. This reading should fall within the specified range provided in your service manual.
5. Testing the Sensor’s Voltage Output:
- Connect the Multimeter to the Sensor’s Terminals: Connect the multimeter probes to the appropriate terminals, typically the signal wire and ground wire.
- Apply Vacuum: Use the vacuum pump to apply a specific vacuum pressure to the sensor’s intake port. The service manual will specify the required vacuum pressure.
- Record the Voltage Reading: Observe the voltage reading on the multimeter. The voltage should change proportionally to the applied vacuum. The service manual will provide the expected voltage range for different vacuum levels.
6. Analyzing the Test Results:
- Resistance Test: If the resistance reading falls outside the specified range, it indicates a faulty sensor.
- Voltage Test: If the voltage output does not change proportionally to the applied vacuum, it indicates a faulty sensor.
7. Replacing the MAP Sensor (If Necessary):
If the tests reveal a faulty sensor, it is essential to replace it with a new, compatible sensor. Follow these steps:
- Disconnect the Battery: Disconnect the battery to prevent electrical shorts during replacement.
- Remove the Old Sensor: Carefully disconnect the electrical connector and remove the sensor from its mounting location.
- Install the New Sensor: Install the new sensor in the same location, ensuring it is securely mounted.
- Reconnect the Electrical Connector: Carefully reconnect the electrical connector to the new sensor.
- Reconnect the Battery: Reconnect the battery and start the engine.
FAQs Regarding MAP Sensor Testing:
Q: Can I test the MAP sensor without a vacuum pump?
A: While a vacuum pump provides the most accurate testing, you can perform a rudimentary test by applying a partial vacuum to the sensor’s intake port using your mouth. However, this method is less precise and may not provide conclusive results.
Q: What if the MAP sensor tests within the specified range, but the engine is still experiencing problems?
A: A faulty MAP sensor is not the only cause of engine performance issues. Other components, such as the intake manifold, vacuum lines, or the ECU itself, could be contributing to the problem. A thorough diagnostic check by a qualified mechanic is recommended to identify the root cause.
Q: How often should I test the MAP sensor?
A: Regular testing of the MAP sensor is not typically recommended unless you are experiencing engine performance issues or suspect a malfunction. However, it is a good practice to include it as part of a routine engine maintenance check.
Tips for MAP Sensor Testing:
- Cleanliness is Key: Ensure the sensor and its surrounding area are clean and free of debris before testing.
- Use a Reliable Multimeter: Utilize a high-quality multimeter for accurate readings.
- Refer to the Service Manual: Always consult your vehicle’s service manual for specific test procedures and specifications.
- Be Patient and Careful: Take your time during the testing process, ensuring you handle the components carefully and avoid damaging them.
Conclusion
The MAP sensor is a vital component in the intricate symphony of the modern engine. Its role in regulating fuel delivery and optimizing engine performance cannot be overstated. By understanding the signs of a faulty sensor and mastering the techniques for testing it, you can ensure your vehicle’s engine operates at peak efficiency and longevity. Remember, a properly functioning MAP sensor is crucial for a smooth, responsive, and fuel-efficient driving experience.
