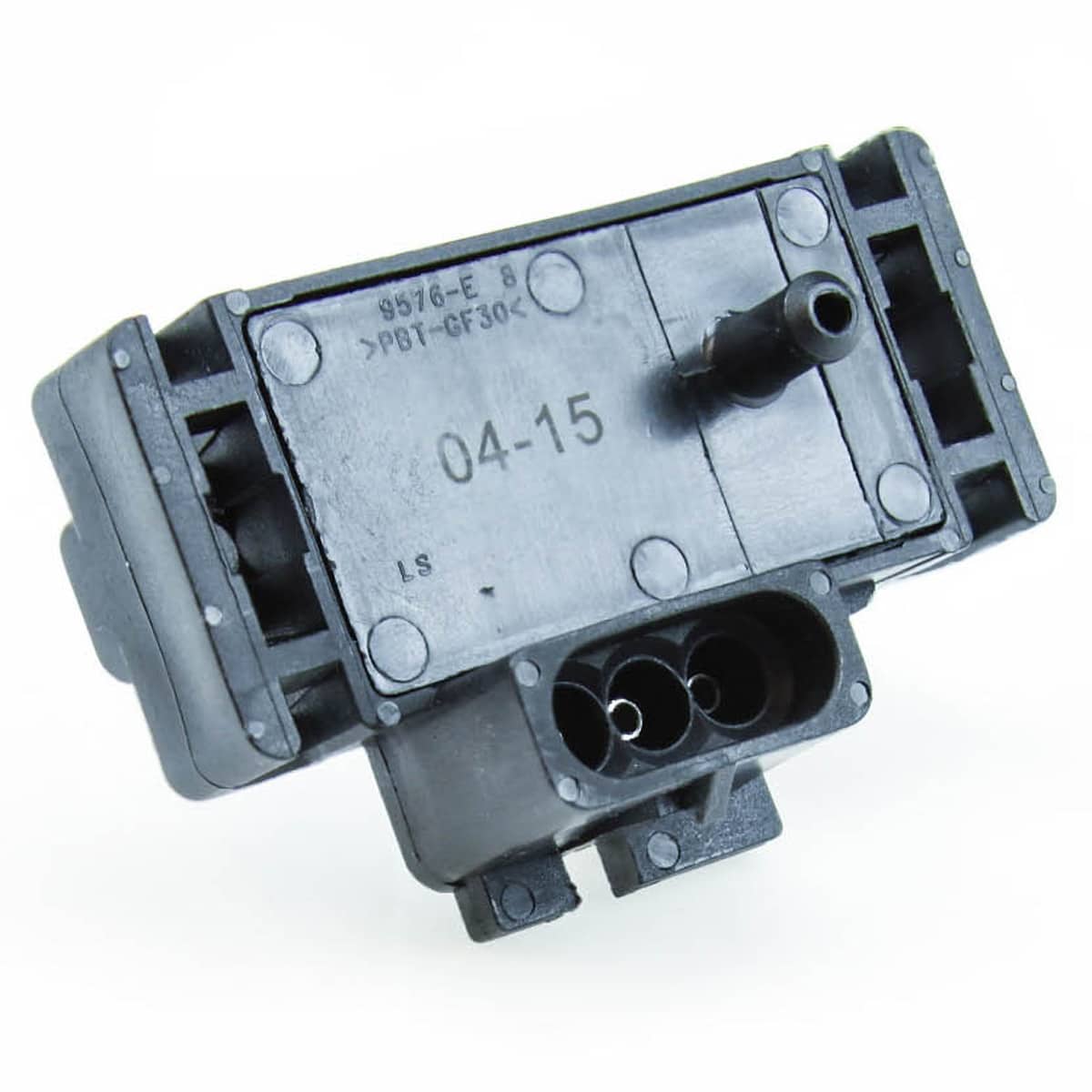

The GM 3-Bar MAP Sensor: A Vital Component in Engine Management
The manifold absolute pressure (MAP) sensor plays a critical role in modern automotive engine management systems. Its primary function is to measure the pressure within the intake manifold, providing the engine control unit (ECU) with crucial data for optimizing fuel injection and ignition timing. In the context of General Motors (GM) vehicles, the 3-bar MAP sensor stands out as a significant upgrade, offering enhanced accuracy and capability for higher-performance applications.
Understanding the Basics: How MAP Sensors Work
At its core, a MAP sensor is a pressure transducer. It converts the pressure within the intake manifold into an electrical signal, which the ECU can interpret. The sensor’s design typically involves a diaphragm, which is sensitive to pressure changes. This diaphragm is connected to a variable resistor, whose resistance alters with the movement of the diaphragm.
When air enters the intake manifold, the pressure increases. This pressure acts on the diaphragm, causing it to flex. The flex in the diaphragm alters the resistance of the variable resistor. The ECU interprets this change in resistance as a change in manifold pressure.
The Significance of the 3-Bar MAP Sensor
The "bar" designation in a MAP sensor refers to the pressure range it can accurately measure. A 3-bar MAP sensor can handle pressures up to approximately 43.5 psi (3 bar), while a standard 1-bar MAP sensor typically measures up to 14.5 psi (1 bar).
This increased pressure range offered by the 3-bar MAP sensor is particularly beneficial in several scenarios:
- Higher Boost Levels: In turbocharged and supercharged vehicles, the intake manifold pressure can significantly exceed the capabilities of a standard 1-bar sensor. A 3-bar sensor allows the ECU to accurately monitor and control the boost pressure, ensuring optimal performance and efficiency.
- Enhanced Engine Control: With a wider pressure measurement range, the 3-bar sensor provides the ECU with more precise data. This enables more accurate fuel injection and ignition timing adjustments, leading to smoother engine operation, improved fuel economy, and enhanced power output.
- Improved Throttle Response: The increased accuracy of the 3-bar sensor allows for more responsive throttle control, particularly at higher boost levels. This translates to a more engaging and enjoyable driving experience.
Common Applications of the GM 3-Bar MAP Sensor
The GM 3-bar MAP sensor is commonly found in various GM vehicles, particularly those with performance-oriented engines or turbocharging systems. It is often incorporated into:
- High-performance models: Vehicles like the Corvette, Camaro, and Cadillac CTS-V frequently feature 3-bar MAP sensors to manage their powerful engines effectively.
- Turbocharged engines: The 3-bar sensor is essential for monitoring boost pressure in turbocharged engines, ensuring optimal performance and preventing damage.
- Supercharged engines: Similar to turbocharged engines, supercharged vehicles also benefit from the wider pressure range offered by the 3-bar sensor.
Troubleshooting and Maintenance
While the 3-bar MAP sensor is a robust component, it can still experience issues over time. Common problems include:
- Vacuum leaks: A leak in the intake manifold or vacuum lines can lead to inaccurate pressure readings.
- Sensor failure: The sensor itself can malfunction due to age, exposure to extreme temperatures, or physical damage.
- Electrical issues: Loose connections or faulty wiring can disrupt the communication between the sensor and the ECU.
Signs of a Faulty MAP Sensor
Several symptoms can indicate a potential issue with the MAP sensor:
- Engine hesitation or stumbling: An inaccurate pressure reading can disrupt fuel injection and ignition timing, causing the engine to run rough.
- Reduced power output: The ECU may not be able to properly manage boost pressure, leading to a loss of power.
- Check engine light: A faulty MAP sensor will often trigger the check engine light, accompanied by a diagnostic code.
Tips for Maintaining a Healthy MAP Sensor
- Regular inspections: Visually inspect the sensor for any signs of damage, leaks, or corrosion.
- Vacuum line maintenance: Ensure the vacuum lines are secure and free of leaks.
- Avoid extreme temperatures: Prolonged exposure to extreme heat or cold can affect the sensor’s performance.
- Professional diagnosis: If you suspect a faulty MAP sensor, consult a qualified mechanic for proper diagnosis and repair.
FAQs Regarding the GM 3-Bar MAP Sensor
Q: Can I replace a 1-bar MAP sensor with a 3-bar sensor?
A: While it’s possible to replace a 1-bar sensor with a 3-bar sensor, it’s crucial to ensure the ECU is compatible with the new sensor. The ECU must be able to interpret the wider pressure range provided by the 3-bar sensor. If the ECU is not compatible, it may require reprogramming or modification to work correctly with the new sensor.
Q: What are the benefits of using a 3-bar MAP sensor in a naturally aspirated engine?
A: While a 3-bar sensor is not strictly necessary for naturally aspirated engines, it can still offer some benefits. The increased accuracy can lead to smoother engine operation, potentially improved fuel economy, and slightly enhanced throttle response. However, the gains are generally less significant than in boosted applications.
Q: Can I adjust the boost pressure using the 3-bar MAP sensor?
A: While the 3-bar sensor provides the ECU with more precise data, it does not directly control boost pressure. Boost pressure is typically controlled by a wastegate actuator, which is regulated by the ECU based on the information received from the MAP sensor.
Conclusion
The GM 3-bar MAP sensor is a vital component in modern engine management systems, particularly in high-performance and boosted applications. Its ability to measure a wider pressure range enables more accurate fuel injection, ignition timing, and boost pressure control. By providing the ECU with precise data, the 3-bar sensor contributes to smoother engine operation, improved fuel economy, and enhanced power output. Regular maintenance and troubleshooting are essential for ensuring the sensor’s proper functioning and preventing potential performance issues.
