The engine control unit (ECU) in a Toyota vehicle relies on a network of sensors to monitor various engine parameters. One of these critical sensors is the Manifold Absolute Pressure (MAP) sensor. This sensor plays a crucial role in determining the amount of air entering the engine, directly influencing fuel injection and overall engine performance.

The Role of the MAP Sensor in Engine Management

The MAP sensor is responsible for measuring the absolute pressure within the intake manifold. This pressure, known as manifold absolute pressure (MAP), is a direct indicator of the amount of air drawn into the engine during each intake stroke. The sensor converts this pressure reading into an electrical signal that is transmitted to the ECU.

The ECU utilizes this signal from the MAP sensor alongside other sensor inputs, such as the throttle position sensor (TPS), oxygen sensor (O2), and coolant temperature sensor (CTS), to calculate the optimal amount of fuel to inject into the cylinders. This precise fuel-air mixture ensures efficient combustion, resulting in optimal engine performance, fuel economy, and reduced emissions.

How the MAP Sensor Functions

The MAP sensor typically employs a piezoresistive diaphragm. When air pressure changes within the intake manifold, the diaphragm flexes, altering the resistance within the sensor. This change in resistance is directly proportional to the manifold absolute pressure, and the ECU interprets this resistance change as a voltage signal.

Common Symptoms of a Faulty MAP Sensor

A malfunctioning MAP sensor can lead to a range of engine performance issues. Some common symptoms include:

• Rough idling: A faulty MAP sensor can cause an inconsistent fuel-air mixture, leading to rough engine idling.
• Stalling: The engine may stall, especially at low RPMs, due to an inaccurate fuel-air mixture.
• Reduced power: The engine may experience a loss of power, as the ECU is receiving incorrect information about the amount of air entering the engine.
• Increased fuel consumption: An inaccurate fuel-air mixture can lead to inefficient combustion, resulting in increased fuel consumption.
• Check engine light: A malfunctioning MAP sensor will typically trigger the check engine light, accompanied by a diagnostic trouble code (DTC) indicating a problem with the MAP sensor circuit.

Troubleshooting a Faulty MAP Sensor

If you suspect a faulty MAP sensor, it’s crucial to diagnose the issue accurately. This can be achieved through a combination of visual inspection, diagnostic testing, and verifying the sensor’s functionality.

• Visual inspection: Inspect the MAP sensor for any visible damage, corrosion, or loose connections.
• Diagnostic testing: Utilize an OBD-II scanner to retrieve diagnostic trouble codes (DTCs) related to the MAP sensor.
• Sensor functionality verification: Employ a multimeter to measure the voltage output of the MAP sensor under different engine conditions. Compare the readings to the manufacturer’s specifications to determine if the sensor is functioning correctly.

Replacing a Faulty MAP Sensor

If the MAP sensor is deemed faulty, it’s essential to replace it with a genuine Toyota part or a high-quality aftermarket equivalent. The replacement process typically involves:

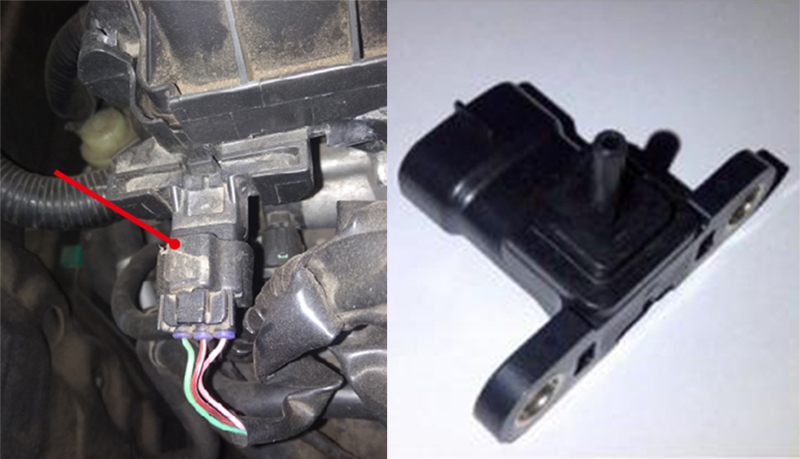

• Locating the MAP sensor: The MAP sensor is usually located on the intake manifold, close to the throttle body.
• Disconnecting the electrical connector: Carefully disconnect the electrical connector leading to the MAP sensor.
• Removing the sensor: Depending on the vehicle model, the sensor may be secured with a bolt or a clip. Carefully remove the sensor from its mounting location.
• Installing the new sensor: Install the new MAP sensor in the same location, ensuring the electrical connector is securely connected.
• Clearing the DTCs: After replacing the sensor, clear the diagnostic trouble codes using an OBD-II scanner.

Importance of Maintaining the MAP Sensor

While the MAP sensor itself does not require regular maintenance, it’s crucial to maintain a clean intake manifold to ensure accurate sensor readings. A buildup of dirt, debris, or oil residue can interfere with the sensor’s operation, leading to inaccurate pressure readings and engine performance issues.

Frequently Asked Questions (FAQs)

Q: What is the lifespan of a MAP sensor?

A: A MAP sensor typically has a long lifespan, often lasting the entire life of the vehicle. However, factors like exposure to extreme temperatures, vibration, and contamination can shorten its lifespan.

Q: Can I clean a MAP sensor?

A: Cleaning a MAP sensor is not recommended, as it can damage the delicate internal components. If the sensor is contaminated, it’s best to replace it with a new one.

Q: Can I use an aftermarket MAP sensor?

A: While aftermarket MAP sensors are available, it’s generally recommended to use a genuine Toyota part or a high-quality aftermarket equivalent. Ensure that the replacement sensor is compatible with your specific vehicle model.

Q: Can a faulty MAP sensor cause a misfire?

A: Yes, a faulty MAP sensor can lead to misfires by providing inaccurate information about the amount of air entering the engine, resulting in an incorrect fuel-air mixture.

Tips for Maintaining a Healthy MAP Sensor

• Regularly inspect the intake manifold for signs of dirt, debris, or oil residue.
• Consider using a high-quality air filter to prevent contaminants from entering the intake manifold.
• Avoid using harsh chemicals or cleaning agents on the MAP sensor.
• If you notice any symptoms of a faulty MAP sensor, address the issue promptly.

Conclusion

The MAP sensor plays a critical role in ensuring optimal engine performance, fuel efficiency, and reduced emissions in Toyota vehicles. By accurately measuring the manifold absolute pressure, it provides the ECU with crucial information for calculating the ideal fuel-air mixture. Maintaining a clean intake manifold and addressing any signs of a faulty sensor promptly can help ensure the long-term health and efficiency of your Toyota engine.
