Unlocking the Engine’s Secrets: A Deep Dive into the Manifold Absolute Pressure Sensor

The intricate dance of combustion within an internal combustion engine relies on a delicate balance of air and fuel. To achieve this equilibrium, modern engines employ a sophisticated network of sensors, one of which plays a crucial role in determining the amount of air entering the engine: the Manifold Absolute Pressure Sensor (MAP sensor). This seemingly simple device acts as a crucial link between the engine’s intake manifold and the Electronic Control Unit (ECU), providing vital information that enables the engine to operate efficiently and smoothly.

The Role of the MAP Sensor: A Window into the Engine’s Intake

The MAP sensor, often referred to as a pressure sensor, is a vital component in modern fuel-injected engines. Its primary function is to measure the absolute pressure within the engine’s intake manifold. This pressure, a direct reflection of the amount of air entering the engine, is a key parameter for the ECU in calculating the appropriate fuel-air mixture for optimal combustion.

Understanding the Inner Workings of a MAP Sensor

The MAP sensor is typically a compact device, often resembling a small cylindrical housing. Within this housing lies a sensitive pressure-sensitive element, most commonly a piezoresistive or capacitive sensor. As the pressure in the intake manifold changes, the pressure-sensitive element within the MAP sensor experiences a corresponding change in its electrical resistance or capacitance. This change is then converted into an electrical signal that is sent to the ECU.

The Importance of the MAP Sensor: Ensuring Optimal Engine Performance

The MAP sensor’s role extends beyond simply measuring pressure. It plays a critical role in optimizing engine performance, fuel efficiency, and emissions control. By providing the ECU with real-time information about the amount of air entering the engine, the MAP sensor allows the ECU to:

• Calculate the optimal fuel-air ratio: The ECU uses the MAP sensor data to determine the precise amount of fuel needed to achieve the ideal fuel-air mixture for efficient combustion. This ensures optimal power output while minimizing fuel consumption.
• Adjust engine timing: The ECU can adjust the timing of ignition based on the MAP sensor readings. This fine-tuning of the ignition timing further optimizes combustion and reduces emissions.
• Control emissions systems: The MAP sensor data is crucial for the proper functioning of emissions control systems, such as the catalytic converter and exhaust gas recirculation (EGR) system. This ensures that the engine operates within environmentally friendly limits.
• Monitor boost pressure (turbocharged engines): In turbocharged engines, the MAP sensor plays a vital role in monitoring the boost pressure generated by the turbocharger. This information allows the ECU to manage the boost pressure effectively, preventing overboosting and ensuring safe and efficient operation.

Signs of a Failing MAP Sensor: Recognizing the Warning Signs

A malfunctioning MAP sensor can lead to a range of engine performance issues. Recognizing these symptoms early can prevent further damage and ensure optimal engine health. Some common signs of a failing MAP sensor include:

• Engine hesitation or stalling: A faulty MAP sensor can cause the engine to hesitate or stall, particularly at low engine speeds.
• Poor fuel economy: An inaccurate MAP sensor reading can lead to an overly rich or lean fuel-air mixture, resulting in decreased fuel efficiency.
• Rough idling: A failing MAP sensor can disrupt the engine’s idle speed, leading to rough or erratic idling.
• Increased emissions: A malfunctioning MAP sensor can cause the engine to run outside its optimal operating parameters, leading to increased emissions.
• Check engine light: The ECU will often trigger a check engine light if it detects a fault with the MAP sensor.

Addressing a Failing MAP Sensor: Diagnosis and Replacement

If you suspect a problem with your MAP sensor, it’s crucial to have it diagnosed and addressed promptly. A qualified mechanic can use diagnostic tools to assess the MAP sensor’s performance and determine if it needs replacement.

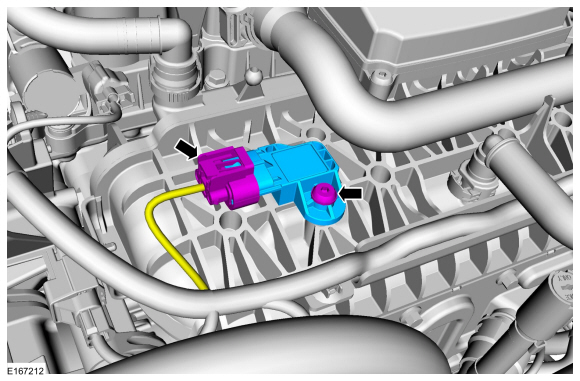

Replacing a MAP Sensor: A Simple Procedure

Replacing a MAP sensor is generally a straightforward procedure that can be performed by a skilled DIY enthusiast. However, it’s important to consult the vehicle’s repair manual for specific instructions and safety precautions.

MAP Sensor FAQs: Addressing Common Queries

Q: What is the difference between a MAP sensor and a MAF sensor?

A: While both MAP and MAF sensors play crucial roles in engine management, they measure different parameters. The MAP sensor measures absolute pressure within the intake manifold, while the MAF sensor measures the mass airflow entering the engine.

Q: Can I clean a MAP sensor?

A: While some sources suggest cleaning a MAP sensor, it is generally not recommended. The delicate sensor element can be easily damaged during cleaning. If you suspect a problem with the MAP sensor, it’s best to replace it.

Q: How long does a MAP sensor last?

A: MAP sensors are typically quite durable and can last for the lifetime of the vehicle. However, factors such as environmental conditions, exposure to dirt and grime, and excessive engine vibrations can affect their lifespan.

Q: Can I drive with a faulty MAP sensor?

A: While driving with a faulty MAP sensor may not immediately cause catastrophic damage, it can lead to decreased fuel efficiency, increased emissions, and potential engine damage in the long run. It’s best to have the sensor replaced as soon as possible.

Tips for Maintaining a Healthy MAP Sensor

• Regular maintenance: Ensure that your engine air filter is clean and regularly replaced to prevent dirt and debris from entering the intake manifold and potentially damaging the MAP sensor.
• Avoid harsh environments: Excessive exposure to dirt, grime, and extreme temperatures can affect the sensor’s performance.
• Professional inspection: Have your MAP sensor inspected during routine vehicle maintenance to ensure it’s operating correctly.

Conclusion: The Unsung Hero of Engine Management

The MAP sensor, though often overlooked, plays a vital role in ensuring optimal engine performance, fuel efficiency, and emissions control. By providing the ECU with real-time information about the amount of air entering the engine, this unassuming sensor enables the engine to operate at its peak performance. Recognizing the importance of the MAP sensor and ensuring its proper functioning is crucial for maintaining a healthy and efficient engine.
