The modern internal combustion engine, a marvel of engineering, relies on a complex interplay of sensors and actuators to achieve optimal performance. Among these crucial components is the manifold absolute pressure (MAP) sensor, a vital piece of the engine’s control system that plays a critical role in determining fuel-air mixture ratios.

This article delves into the intricacies of Ford MAP sensor testing, providing a comprehensive guide for understanding its function, identifying potential issues, and troubleshooting common problems. By exploring the diagnostic process, readers will gain valuable insights into the significance of this sensor and its impact on engine performance.

The MAP Sensor: A Guardian of Engine Efficiency

The MAP sensor, a small, pressure-sensitive device, is typically located on the intake manifold of a Ford engine. Its primary function is to measure the absolute pressure within the intake manifold, which directly reflects the amount of air being drawn into the engine. This information is then transmitted to the engine control unit (ECU), which uses it to calculate the optimal fuel-air ratio for combustion.

Why MAP Sensor Testing Matters

A malfunctioning MAP sensor can significantly disrupt engine operation, leading to a range of performance issues, including:

• Reduced Engine Power: An inaccurate pressure reading can result in a lean fuel-air mixture, reducing engine power and causing hesitation or sluggish acceleration.
• Rough Idle: A faulty MAP sensor can cause an erratic idle, leading to engine vibration and stalling.
• Increased Fuel Consumption: An overly rich fuel-air mixture, caused by an inaccurate pressure reading, can result in increased fuel consumption and emissions.
• Check Engine Light: A malfunctioning MAP sensor will typically trigger the Check Engine Light, indicating a problem with the engine’s control system.

Identifying Potential Issues: Recognizing the Symptoms

The first step in diagnosing a potential MAP sensor issue is to observe the vehicle’s behavior. Common symptoms that may indicate a faulty sensor include:

• Engine Stalling: A sudden loss of engine power, often accompanied by a rough idle or stalling, can be a sign of a faulty MAP sensor.
• Black Smoke from Exhaust: Excessive black smoke from the exhaust can indicate a rich fuel-air mixture, potentially caused by a faulty MAP sensor.
• Hesitation or Stuttering: A hesitant or stuttering engine, particularly during acceleration, can be a symptom of an inaccurate pressure reading.
• Erratic Fuel Gauge Readings: In some cases, a faulty MAP sensor can also affect fuel gauge accuracy.

Testing the MAP Sensor: A Step-by-Step Guide

Once potential issues have been identified, it’s time to test the MAP sensor to confirm its functionality. This process involves several steps:

1. Visual Inspection: Begin by visually inspecting the MAP sensor for any signs of damage, such as cracks, corrosion, or loose connections.
2. Voltage Check: Using a multimeter, measure the voltage at the sensor’s terminals. The voltage reading should be within the manufacturer’s specifications.
3. Resistance Check: Measure the resistance between the sensor’s terminals. The resistance should also fall within the manufacturer’s specified range.
4. Pressure Test: Apply a known pressure to the sensor’s inlet port and measure the output voltage. This test requires a specialized pressure gauge and a vacuum pump.

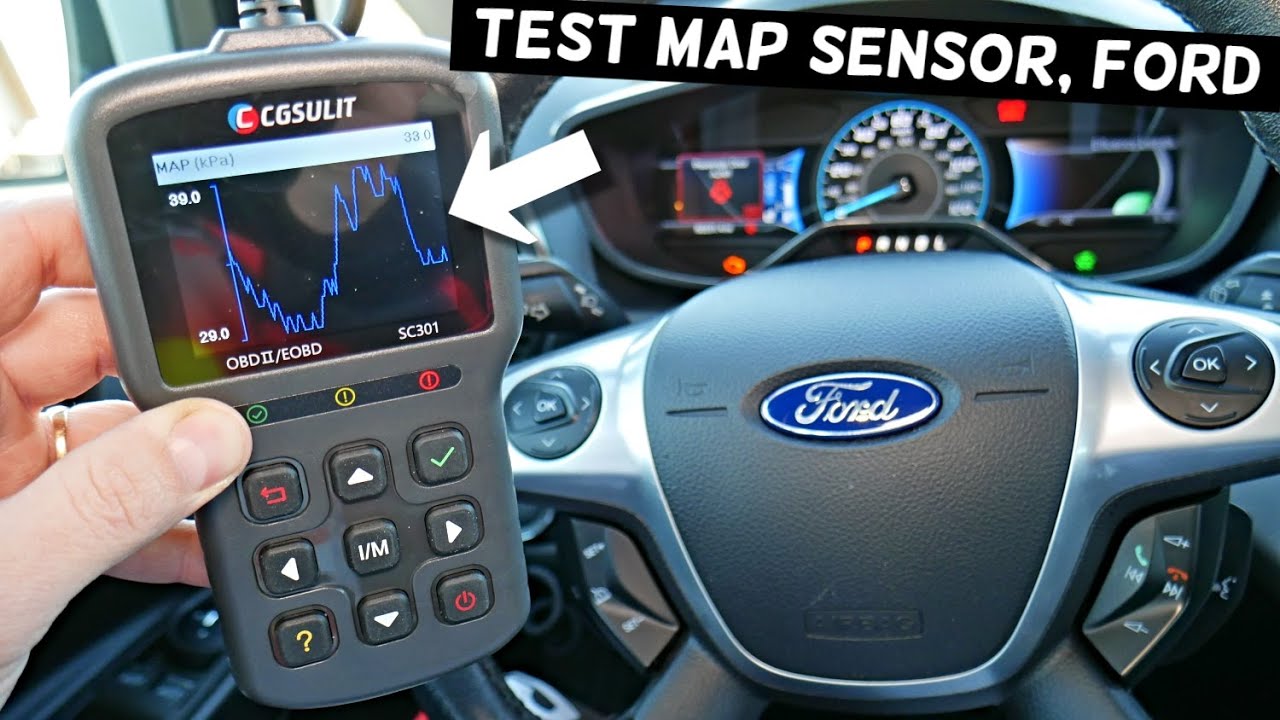

5. Functional Test: Connect the MAP sensor to a diagnostic scanner and monitor its output readings while the engine is running. This test can identify any inconsistencies or errors in the sensor’s readings.

Troubleshooting Common Problems

If the MAP sensor tests reveal a malfunction, there are several potential solutions:

• Replacing the Sensor: The most common solution is to replace the faulty sensor with a new one. Ensure the replacement sensor is compatible with the specific vehicle model and year.
• Checking Wiring: Inspect the wiring connecting the MAP sensor to the ECU for any damage, corrosion, or loose connections.
• Cleaning the Sensor: In some cases, a buildup of dirt or debris on the sensor can cause malfunctions. Clean the sensor with a suitable cleaner and ensure it is completely dry before reinstalling.
• Checking the Vacuum System: A leak in the vacuum system can also affect the MAP sensor’s readings. Inspect the vacuum lines for any cracks, leaks, or blockages.

FAQs: Addressing Common Questions

Q: How often should the MAP sensor be tested?

A: While there is no set schedule for MAP sensor testing, it is recommended to test it as part of routine engine maintenance, especially if you experience any of the symptoms mentioned earlier.

Q: Can I replace the MAP sensor myself?

A: Replacing a MAP sensor is a relatively simple procedure that can be performed by most DIY mechanics. However, consult your vehicle’s owner’s manual or a reputable repair manual for specific instructions and safety precautions.

Q: How much does a MAP sensor replacement cost?

A: The cost of a new MAP sensor can vary depending on the vehicle model and year. However, it is generally a relatively inexpensive repair compared to other engine-related repairs.

Q: Can a faulty MAP sensor cause other engine problems?

A: Yes, a faulty MAP sensor can indirectly cause other engine problems, such as spark plug fouling, catalytic converter damage, and even engine damage in severe cases.

Tips for Maintaining MAP Sensor Health

• Regular Maintenance: Ensure regular maintenance of the engine, including oil changes and air filter replacements, to prevent dirt and debris from accumulating on the sensor.
• Avoid Harsh Environments: Excessive exposure to extreme temperatures, humidity, and dirt can damage the sensor. Park your vehicle in a sheltered area when possible.
• Use Quality Fuel: Using high-quality fuel can help prevent deposits from forming on the sensor.

Conclusion

The MAP sensor is a crucial component of a Ford engine’s control system, responsible for providing accurate pressure readings to the ECU. A malfunctioning MAP sensor can lead to a range of performance issues, affecting engine power, fuel consumption, and overall drivability. Regular testing and maintenance of the MAP sensor are essential for ensuring optimal engine performance and avoiding potential problems. By understanding the sensor’s function, recognizing potential issues, and following the troubleshooting steps outlined in this article, drivers can confidently address any MAP sensor-related problems and maintain their Ford vehicles in peak condition.
